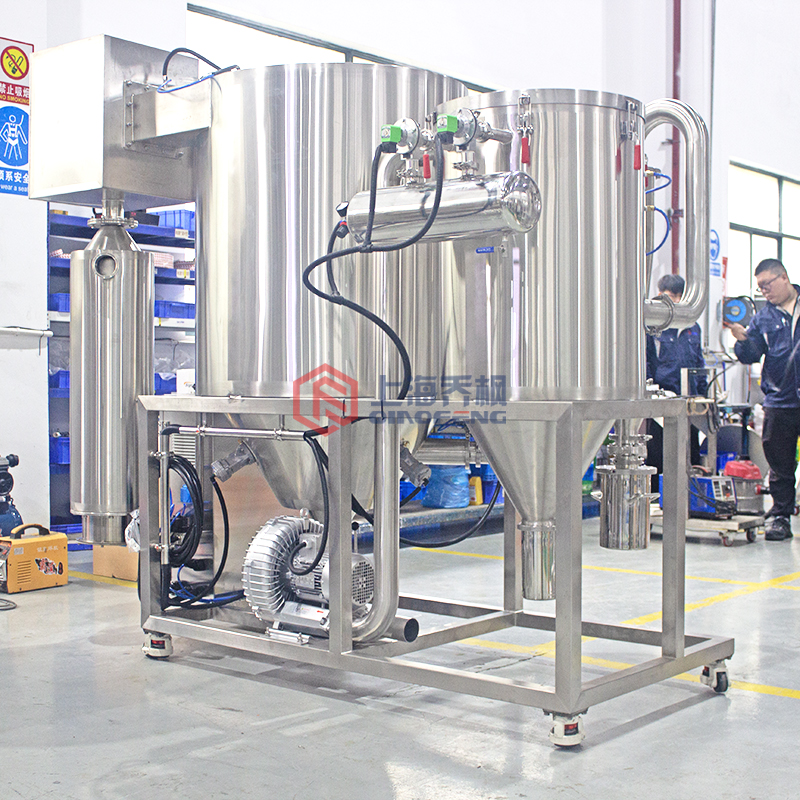

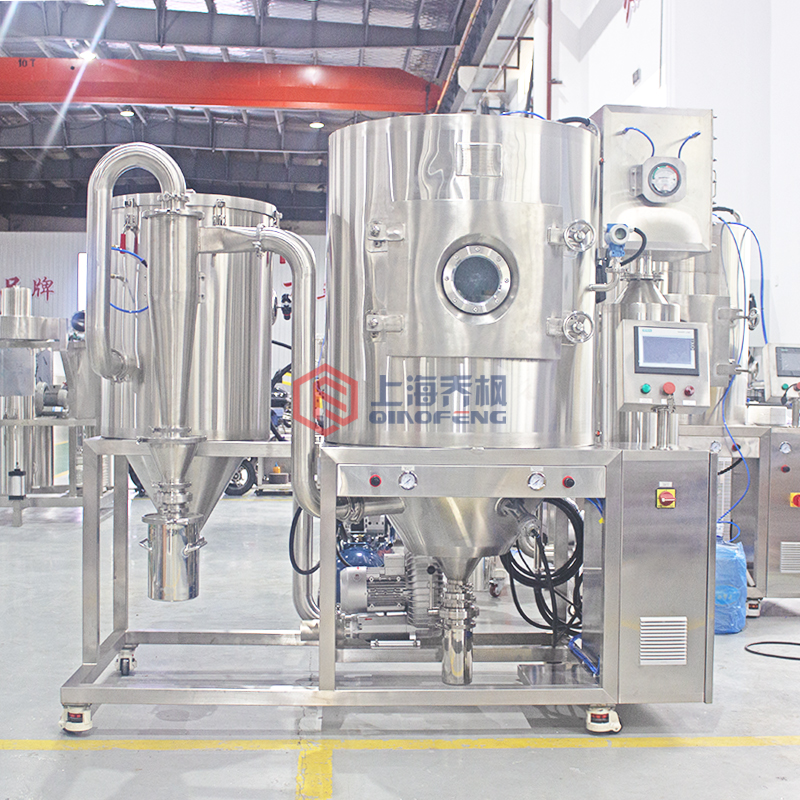

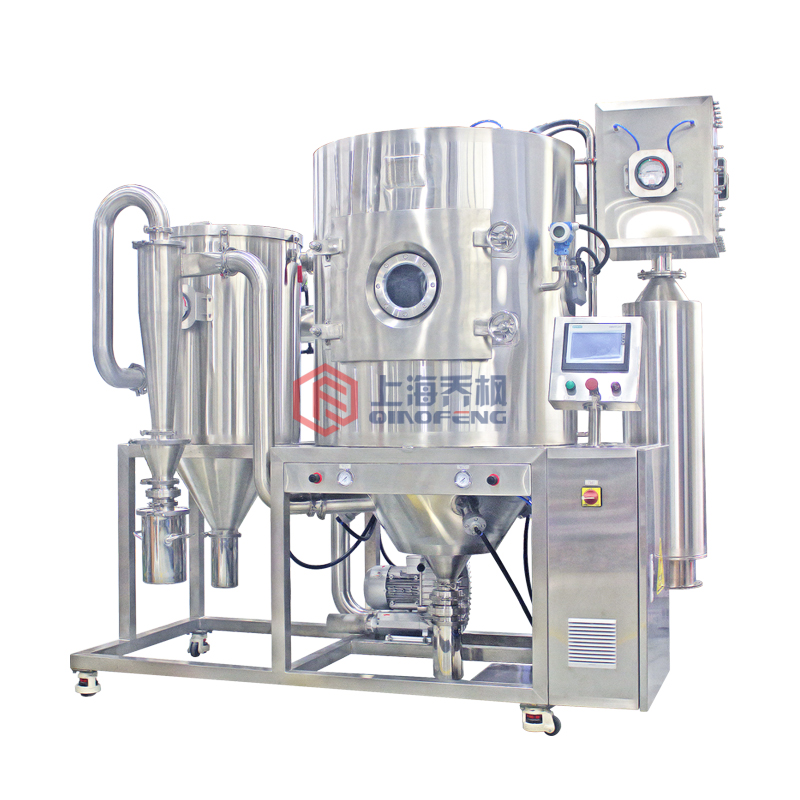

Centrifugal spray drier

Device name:	High speed centrifugal spray dryer
Equipment type:	qfn - l - 5
Equipment specifications:	5Kg/h (support customized)
Test machine:	Support test making experiment
Scope of application:	Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Telephone:	17317246351

Buy online

Detail

1. product features:

The electric centrifugal atomizer, centrifugal atomizing spray head, the particle size distribution of the material is steeper and the particle distribution is even.
Color large touch screen operation, automatic control and manual control combined, Chinese and English panels, parameter LCD display.
Real time control of PID thermostat control technology, accurate temperature control, heating temperature control accuracy of + 1 degrees Celsius.
The drying speed is fast, generally only 1-1.5 seconds, with instantaneous drying characteristics.
The drying process is completed in a short time, which is suitable for drying the heat sensitive material and keeping the original characteristics of the material.
The production process is simplified, intelligent operation touch screen control program is convenient, suitable for continuous production control experiment, please contact our staff of customized production type spray dryer.
The product has good dispersibility, fluidity and solubility.

2,Equipment configuration:

system	number	parts	brand	Model	Number	Remarks
electric control system Series	One	Electronic control system of QFN-L series atomizing dryer	Maple Maple	/	1 sets	See device parameters
	Two	Switching Mode Power Supply	The Ming and Wei	you - 100 - 24	The 1	/
	Three	Air switch	chint	DZ47 series	Some	/
	Four	Small relay	chint	JZX-22F (D) /2Z	Some	/
	Four	Small relay	chint	JZX-22F (D) /4Z	Some	/
	Five	Solid state relay	Meg	/	1 sets	/
	Six	Frequency converter	Taida	/	1 sets	2.2kw
	Seven	Digital controller	Taida	DTC-1000 series	Some	/
	Eight	Power switch			The 1
	Nine	Indicator light	chint	nd16 - 22ds / 4	The 1	Red, 220VAC
	Ten	sensor	Famous Shanghai	wzp - 241	3 roots	/
	Eleven	Terminal terminal	/	/	Some	/
	Twelve	Guide	/	/	Some	/
	Thirteen	Groove	/	/	Some	Bottom hole
	Fourteen	wire	Sails	/	/	/
	Fifteen	Electric box	Maple Maple	Customized	The 1	sus304
transport material system Series	One	Peristaltic pump	Hui Yu	yz15 13a	1 sets	/
transport material system Series	Two	Feed pipe	/		/	/
Fog turn system Series	One	Atomization system	Maple Maple	Customized	1 sets	See device parameters
	Two	Pressure gauge	AirTAC	0-1MPA		/
	Three	Circulating pump	/	/	One	/
	Three	Air compressor	Dolphin	0-0.8MPA	1 sets	/
dry dryness system Series	One	Dry pagoda	Maple Maple	/	The 1	See device parameters
dry dryness system Series	Two	Hot air distributor and volute (matching of atomization system)	Maple Maple	Customized	The 1	Three hundred and four
yield product return collect system Series	One	cyclone	Maple Maple	Customized	One	Three hundred and four
	Two	Dust collector (optional)	Maple Maple	Customized	/	See device parameters
	Three	Collecting bucket	Maple Maple	Customized	Three	Three hundred and four
	Four	Feed valve	Warm letter	φ63 / 108mm	Three	Health level 304
Hot air circulation system	One	Fan	/	/	1 sets	See device parameters
Hot air circulation system	Two	heater	Maple Maple	Customized		See device parameters

Equipment parameters

Centrifugal spray dryer	qfn - l-5	qfn - l-10	qfn - l - 15
Water evaporation	5Kg/h	10Kg/h	15Kg/h
Minimum feed volume	80ml	120ml	150ml
The diameter of the drying chamber (mm)	￠800	￠1200	￠1600
Height of dry tower (mm)	￠800	￠1200	￠1500
Atomization structure	Centrifugal atomizer (QFN-L-RODVER2018-1A) speed: 32000r/min (adjustable)
Electronic control system	Qiao Feng centrifugal atomization system (QFN-L-ES-VER2018-1A)
Maximum inlet temperature (centigrade)	Two hundred and sixty
Standard of main electrical accessories (including PLC, analog module, touch screen) (optional)	Control module (standard), delta control module, SIEMENS control module, Germany.
	On the other hand
Standard of electrical auxiliary accessories selection (including Contactors) (optional)	CHINT (standard): Deli, Schneider.
Contact with the material (optional)	?sus304 (標準) □sus316 □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Exhaust reutilization, energy saving over 30% (optional)	Assembly (standard) / assembly
Atomizing nozzle (using diamond coating)	(SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond
Equipment warranty	1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years.
Heater capacity	15kw	25kw	30kw
Blower [power (kw), air volume (m /min)] reference	nothing	No /[0.25,9.5]	[0.25,9.5]
Air blower [power (kw), air volume (m /h)]	[1.5，250]	[2.2，300]	[2.2，1410]
Compressor [power (kw), air volume (L /min)]	[0.58，108]	[1.5，250]	[1.5，250]
Electric power (installed capacity)	18kw	30kw	40kw
Thermal insulation material	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton
Pulse bag filter (optional)	Polytetrafluoroethylene film mulching material
Pulse bag filter (optional)	4	9	21
Shape size (mm) (L x W x H) (Reference)	1600×1400×1800	2200×1600×2200	2600×1200×2500
Installation weight (Reference)	300kg	700kg	1000kg

Power supply

380V/-3: it can be customized according to different national standards.

1: water vaporization at 250 degrees centigrade at the inlet temperature,
2: for more evaporation equipment, please inquire online or call our company.
